High-Durability Rubber Pad for Golf Cart Windshield Clip Weatherproof and Anti-Slip for Secure Windshield Attachment
Item specifics
- Color (General)
- Custom
- Material
- EPDM or other rubber materials: NBR, CR, IIR
- Length
- Custom
- Dimension
- Custom
- Temperature Range
- －45°C—125°C
- Shore Hardness
- 50-95 Shore A or customize
- Tensile strength
- 5～12Mpa
- Elongation at break
- 400%
Review
Description

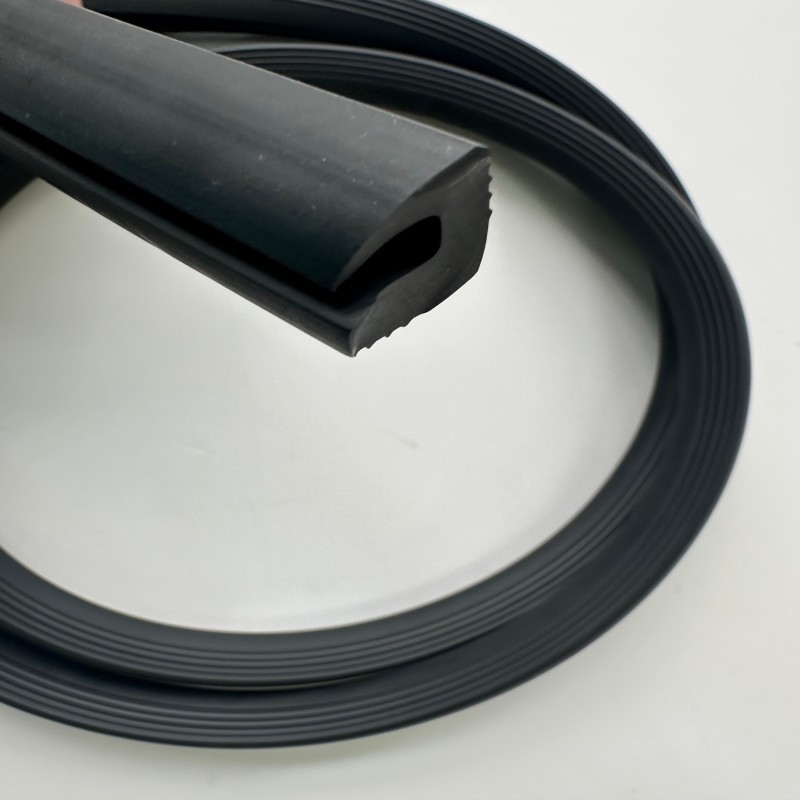

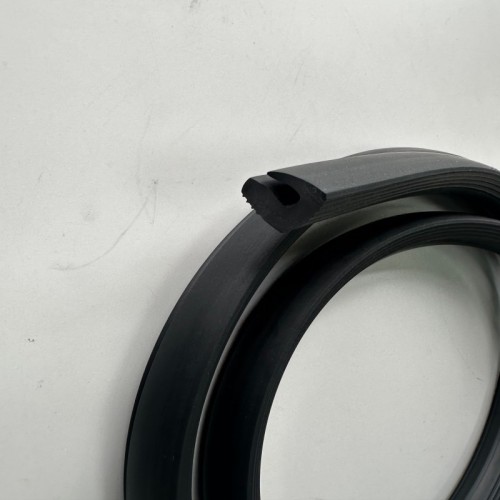

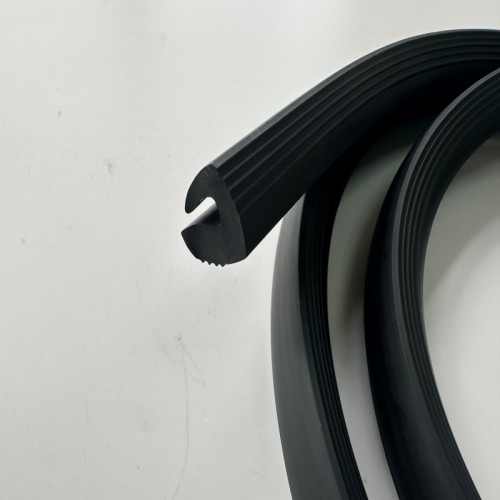

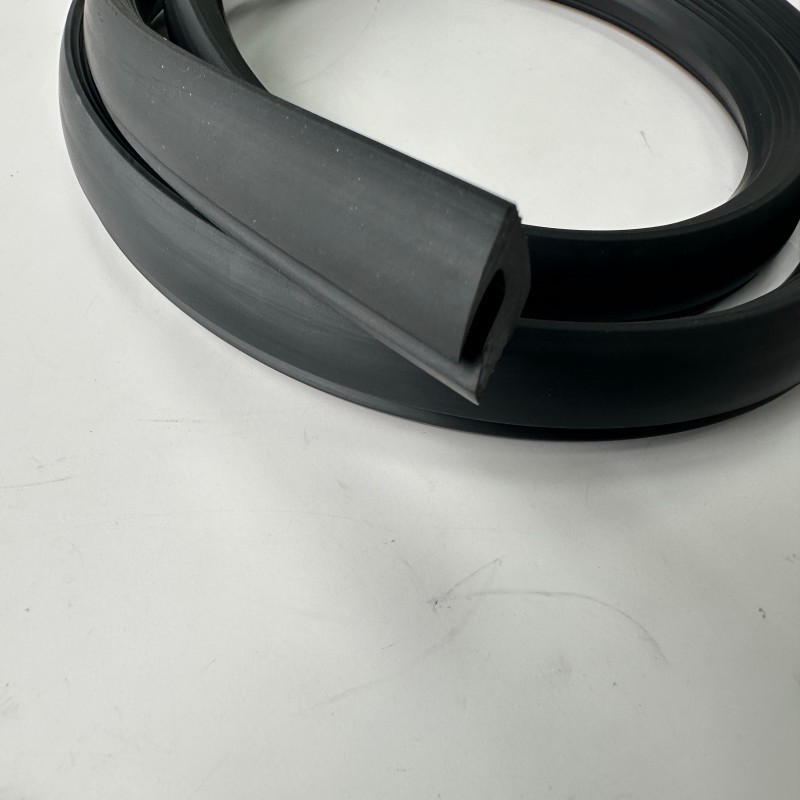

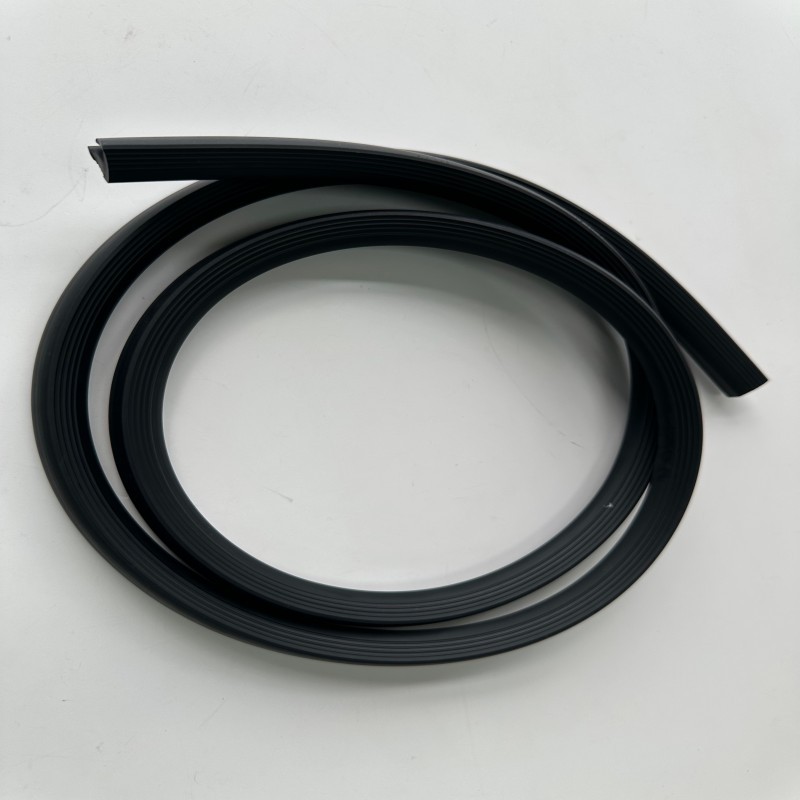

Rubber Pad for Golf Cart Windshield Clip Introduction
The rubber pad provides excellent shock - absorption. When your golf cart is moving on uneven terrains, it can effectively reduce vibrations transferred to the windshield, ensuring a stable and secure windshield installation.
Customization Options
RESRUB could produce the tubing with enough length to fully connect any size loop.
And available to custom colors, such as black, white, pink, etc.
Material Advantages
This rubber pad is highly durable and weather - resistant. It can withstand various outdoor conditions, from intense sunlight to heavy rain, without losing its shape or performance.
Rubber Pad for Golf Cart Windshield Clip Properties:
| Length | Customizable | OEM/ODM | Available |
| Logo | Customer Logo Available | Lead Time | 10 Days |
| MOQ | 100 Meters | Application | Gaming Case |
Application Scope
The rubber pad is suitable for all standard - sized golf cart windshields that use clip - based attachment systems. It can be used in both new golf cart installations and as a replacement part for existing windshields.
How do the additives in the rubber pad affect its performance?
Fillers like calcium carbonate, added in the range of 10 - 20% by weight, improve mechanical properties and reduce cost. But too much filler can decrease rubber flexibility and overall performance. Antioxidants and UV stabilizers, with a total content of at least 2% by weight, protect the rubber from oxidation and degradation due to sunlight and oxygen, ensuring long - term performance in outdoor use.
How do I determine the correct dimensions of the rubber pad for my golf cart windshield clip?

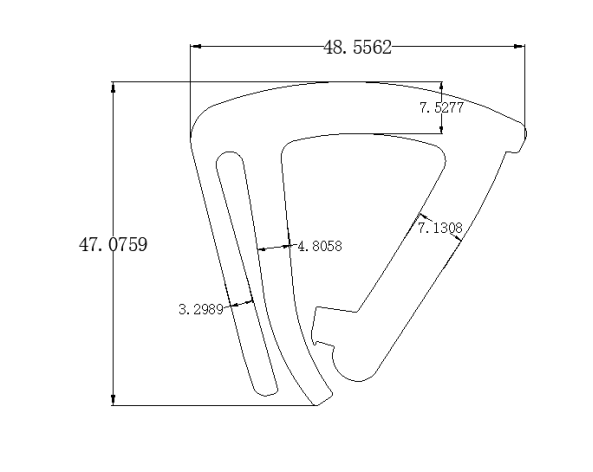

The length of the pad, specified as [X] mm with a ±1 mm tolerance, depends on the size of the windshield clip and the area it needs to cover. The width, [Y] mm with a ±0.5 mm tolerance, ensures sufficient coverage and stability. The thickness, [Z] mm with a ±0.2 mm tolerance, is crucial for vibration - dampening and cushioning.
Why is EPDM rubber chosen for the golf cart windshield clip rubber pad?
EPDM rubber is selected because golf carts are used outdoors. EPDM can endure sunlight (UV rays), rain, and temperature changes without degrading significantly. It also resists ozone well, which is useful in polluted areas. The Shore A hardness of 60 - 70 Shore A in EPDM provides a good balance between flexibility to fit the windshield and clip and durability to withstand mechanical stress during golf cart operation.
Item | Rubber Pad for Golf Cart Windshield Clip | |
Size | Customize | |
Material | EPDM or Silicone | |
Hardness | 50-95 Shore A or customize | |
Color | White or customize any color | |
Density | 0.6-1.45/cm³ | |
Temperature resistant | －45°C—125°C | |
Tensile strength | 5～12Mpa | |
Elongation at break | 200～900% | |
Lead time | 3 days for sample, 15 days for batch order | |
Packing method | Carton/ PE bag / Wooden pallet / Paper roll | |
Price tip | The price above is for your reference, final actual price depends on your design,material request, surface treatment, order quantity, package request, etc. | |
