Heavy-Duty Shock-Absorbent Dishwasher Door Seal for Reliable and Quiet Dishwashing Cycles
Item specifics
- Color (General)
- Custom
- Material
- EPDM or other rubber materials: NBR, CR, IIR
- Length
- Custom
- Dimension
- Custom
- Temperature Range
- －45°C—125°C
- Shore Hardness
- 50-95 Shore A or customize
- Tensile strength
- 5～12Mpa
- Elongation at break
- 400%
Review
Description

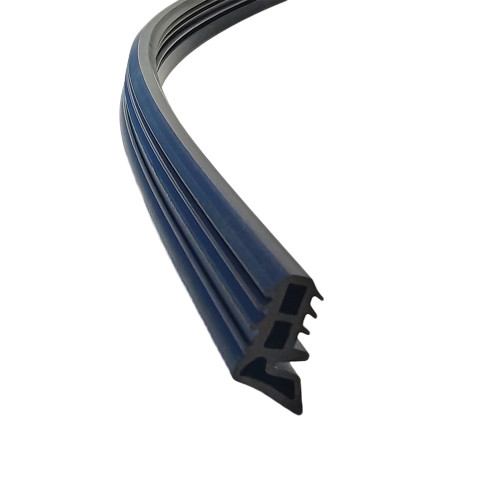

Dishwasher Door Seal Introduction
With easy installation, it's an essential replacement part to keep your dishwasher running smoothly and efficiently.
Customization Options
RESRUB could produce the tubing with enough length to fully connect any size loop.
And available to custom colors, such as black, white, pink, etc.
Material Advantages
Its flexible yet durable material ensures a perfect fit around the door, preventing water leakage during the wash cycle. This not only safeguards your kitchen from water damage but also improves the energy efficiency of the dishwasher by retaining heat inside.
Dishwasher Door Seal Properties:
| Length | Customizable | OEM/ODM | Available |
| Logo | Customer Logo Available | Lead Time | 10 Days |
| MOQ | 100 Meters | Application | Gaming Case |
Technical Specification
EPDM rubber (ethylene propylene diene monomer rubber) is a type of synthetic rubber that is used in many applications, with outstanding resistance to oxygen, ozone, and sunlight. Additionally, it also has low temperature flexibility, excellent heat, water and steam resistance. Useful working temperature range is -60°C up to +150°C.
What materials are dishwasher door seals made of?
Dishwasher door seals are commonly made of materials like silicone rubber, EPDM (Ethylene - Propylene - Diene Monomer), and thermoplastic elastomers (TPE).
which materials is the best?
Silicone rubber offers excellent heat resistance and aging resistance, which is great for withstanding the high - temperature environment inside the dishwasher. EPDM has outstanding water and chemical corrosion resistance. TPE combines the elasticity of rubber and the processing properties of plastic, being soft and providing good sealing. The "best" material depends on specific requirements. For high - temperature resistance, silicone might be preferred. If chemical resistance is crucial, EPDM could be a better choice.
Do all dishwasher door seals fit all dishwasher models?
No, dishwasher door seals are not universal and do not fit all dishwasher models. Each dishwasher model has its own specific design and dimensions for the door and the seal. The length, width, thickness, and the shape of the seal, as well as the installation method, can vary significantly between different makes and models.
Item | Dishwasher Door Seal | |
Size | Customize | |
Material | EPDM or Silicone | |
Hardness | 50-95 Shore A or customize | |
Color | White or customize any color | |
Density | 0.6-1.45/cm³ | |
Temperature resistant | －45°C—125°C | |
Tensile strength | 5～12Mpa | |
Elongation at break | 200～900% | |
Lead time | 3 days for sample, 15 days for batch order | |
Packing method | Carton/ PE bag / Wooden pallet / Paper roll | |
Price tip | The price above is for your reference, final actual price depends on your design,material request, surface treatment, order quantity, package request, etc. | |
