How to Choose EPDM Rubber Hose (Size/Wall/Reinforcement)

EPDM rubber hose is one of the most versatile tubing choices for OEM buyers — but the catalog page is only the start. Get the size, wall, or reinforcement wrong, and the same great material can kink, burst, or fail too early.

Walk into a new EPDM hose order with three questions in this order: what size?, how thick?, and do I need reinforcement? Answer those and the spec almost writes itself.

This short guide shows how to pick each of the three — and how RESRUB turns the answers into a custom EPDM hose that fits your line the first time.

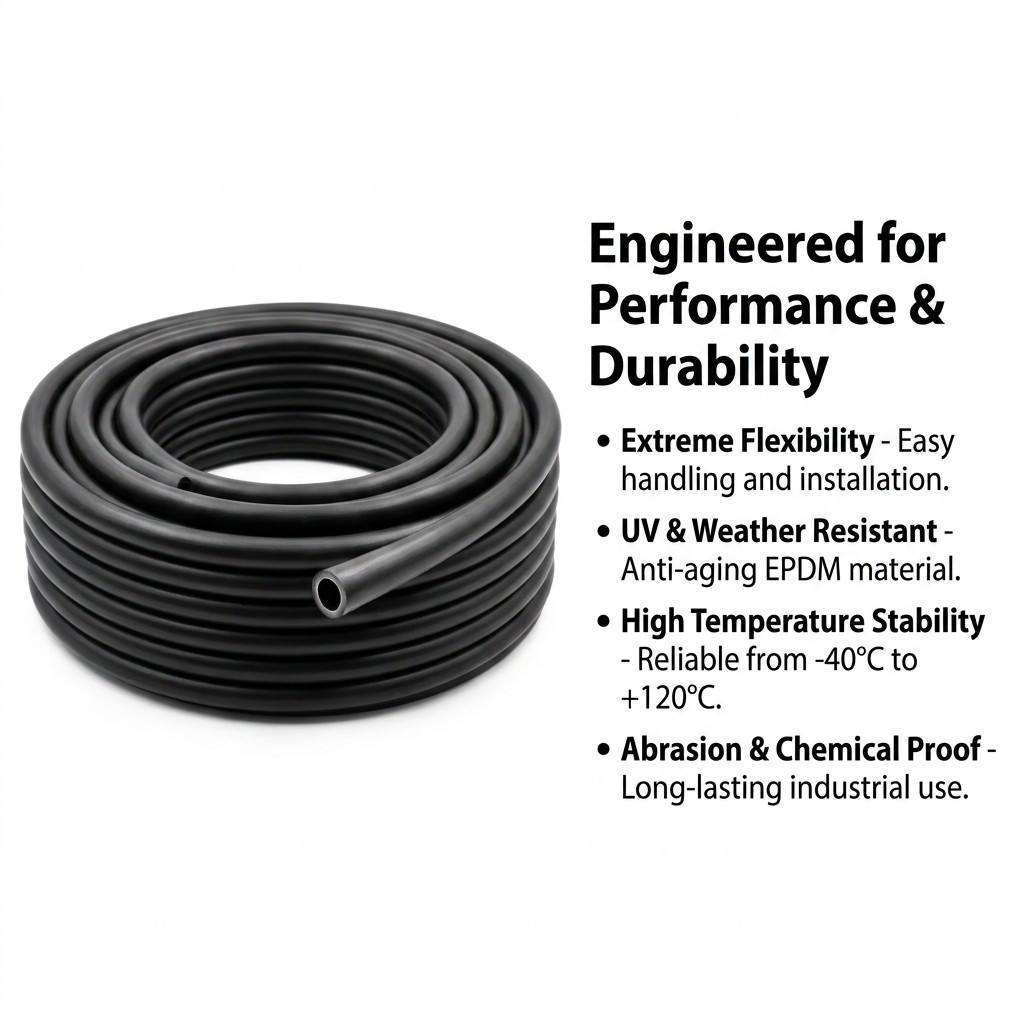

EPDM hose: weatherproof, flexible, -40°C to +120°C.

Size is the first filter, and the most common one to get wrong. Two numbers matter:

• ID (Inner Diameter): the bore that the fluid or air actually flows through. Match this to your fitting and your required flow rate.
• OD (Outer Diameter): the outside of the hose. Match this to your clamp, grommet, or routing space.

Common ID ranges for EPDM hose:

• 2–6 mm — laboratory, instrument air, PC liquid cooling loops.
• 6–16 mm — automotive coolant, small appliance drains, beverage lines.
• 16–32 mm — heater hoses, industrial water, washer/dryer.
• 32–100 mm — large coolant return, rainwater, industrial transfer.

At RESRUB we extrude EPDM hose from 2 mm to 100 mm ID with matching OD, in custom tolerances down to ±0.2 mm. Send your drawing or a sample and we will reverse-engineer the rest.

EPDM hose ID and OD — custom sizes 2 mm to 100 mm, variable wall.

Wall thickness controls three things at once: pressure rating, flexibility, and kink resistance. Thicker wall = stronger, but stiffer; thinner wall = more flexible, but limited pressure. Pick the wall that matches your working pressure — not the burst pressure — with a safety factor of 3–4×.

Quick wall guide:

• Thin wall (1.5–2.5 mm): drain lines, low-pressure air, instrumentation.
• Medium wall (2.5–4 mm): general-purpose water, air, light coolant.
• Thick wall (4–6 mm): radiator / heater hose, pressurized coolant, industrial water up to 10 bar.
• Heavy wall (6+ mm): steam, high-pressure washdown, custom heavy-duty service.

Two EPDM hoses with the same ID and OD can behave very differently in your line if the wall changes. RESRUB offers variable wall thickness on the same tooling run, so you can match pressure rating without changing the fitting.

Uniform wall thickness = consistent pressure resistance and smooth flow.

Reinforcement is the layer between the inner and outer EPDM — it is what turns a simple tube into a pressure hose. Choose reinforcement based on working pressure, vacuum, and how the hose will flex in service.

Three common options:

• No reinforcement (smooth bore): best for low-pressure, gravity drain, or pure fluid transfer where maximum flexibility matters — e.g. PC liquid cooling.
• Textile / polyester braid: the most common choice for radiator, heater, and industrial water hose. Adds 2–3× burst pressure while keeping the hose flexible.
• Steel wire helix / spiral: for vacuum service, large-bore suction hose, or applications with crush risk.

If you are unsure, start with a polyester-braided EPDM hose. It covers roughly 80% of industrial coolant, water, and air applications without over-specifying the cost. RESRUB braids in-house so the braid angle and density are tuned to your pressure curve, not pulled off the shelf.

Polyester-braided EPDM hose — the workhorse for coolant and water service.

Once size, wall, and reinforcement are decided, the last check is the medium and the environment. EPDM handles water, steam, glycol, and most alkalis extremely well, but it is not the right choice for petroleum oil, gasoline, or concentrated hydrocarbons — for those, NBR or FKM is safer.

Where EPDM hose is the right pick:

• Automotive coolant, heater, and overflow lines
• Custom PC liquid cooling loops (low conductivity, smooth bore)
• Dishwasher, washing machine, and appliance water lines
• Industrial water, rainwater, and irrigation transfer
• Outdoor equipment exposed to UV, ozone, or freeze-thaw

Send RESRUB your working pressure, temperature, and the medium, and we will recommend the right combination — and tell you honestly when EPDM is not the right material.

Custom size and length — industrial-grade EPDM hose for OEM lines.

RESRUB is the custom rubber hose factory behind many OEM and industrial brands. We compound, extrude, braid, and cut EPDM hose in one facility — so the recipe, the tooling, and the QA are all under one roof.

What you get with us:

• Custom EPDM, NBR, silicone, and FKM compounds matched to your medium and temperature
• ID from 2 mm to 100 mm, wall from 1.5 mm to 8 mm, any color
• Smooth bore, polyester braid, or steel helix — your choice
• Free sample within 7 days for confirmed drawings
• Direct factory pricing, no trading-company markup

Six-step process: inquiry → design → prototype → production → QC → delivery.

Every EPDM hose order is coiled, sealed, and packed to survive container transit. We use moisture-proof inner wrap, reinforced cartons, and palletized loads for FOB, CIF, and DDP shipments worldwide. Custom labels and barcodes are standard — you can ship straight to your warehouse or your customer.

Browse the full EPDM rubber product range or read the related guide on how to choose between EPDM, NBR, and silicone for material-side decisions.

Sealed polybags, export cartons, woven bag bundles — QC inspected before shipment.
