Can you produce custom rubber hoses and sealing strips according to our drawings or samples?

Can you produce custom rubber hoses and sealing strips according to our drawings or samples?

Can you produce custom rubber hoses and sealing strips according to our drawings or samples?

Yes — RESRUB manufactures fully custom rubber hoses and sealing strips to your drawings or samples.

Send us a 2D technical drawing, 3D CAD file (STEP / IGES / STL), a physical sample, or a written specification. Our engineering team will confirm the material, dimensions, hardness, color and performance targets, then build a prototype for your approval before mass production. We support both OEM (build to your print) and ODM (design suggestions and improvements) workflows for global B2B buyers.

What we can customize

  • Material

    EPDM, NBR, CR, IIR, SBR, FKM, silicone, TPV / TPE, PVC, and custom rubber compounds.

  • Dimensions & Profile

    Hose inner diameter 0.5 – 100 mm, variable wall thickness, any length. Custom irregular strip profiles.

  • Hardness

    Shore A 20 – 90, fine-tuned to your sealing or cushioning requirement.

  • Color

    Any solid color matched to RAL / Pantone, including food-grade and UV-stable options.

  • Performance

    Heat, oil, ozone, weather, flame-retardant, FDA / food-contact, anti-chemical grades on demand.

  • Surface & Finish

    Smooth, matte, fabric-impression, self-adhesive backing, braided reinforcement, fabric wrap.

  • Packaging & Marking

    Cut-to-length, coiled on reel, PE bag + export carton, custom logo print, batch code / barcode.

  • Compliance

    RoHS, REACH, FDA, LFGB, NSF, UL, automotive IATF 16949 material traceability on request.

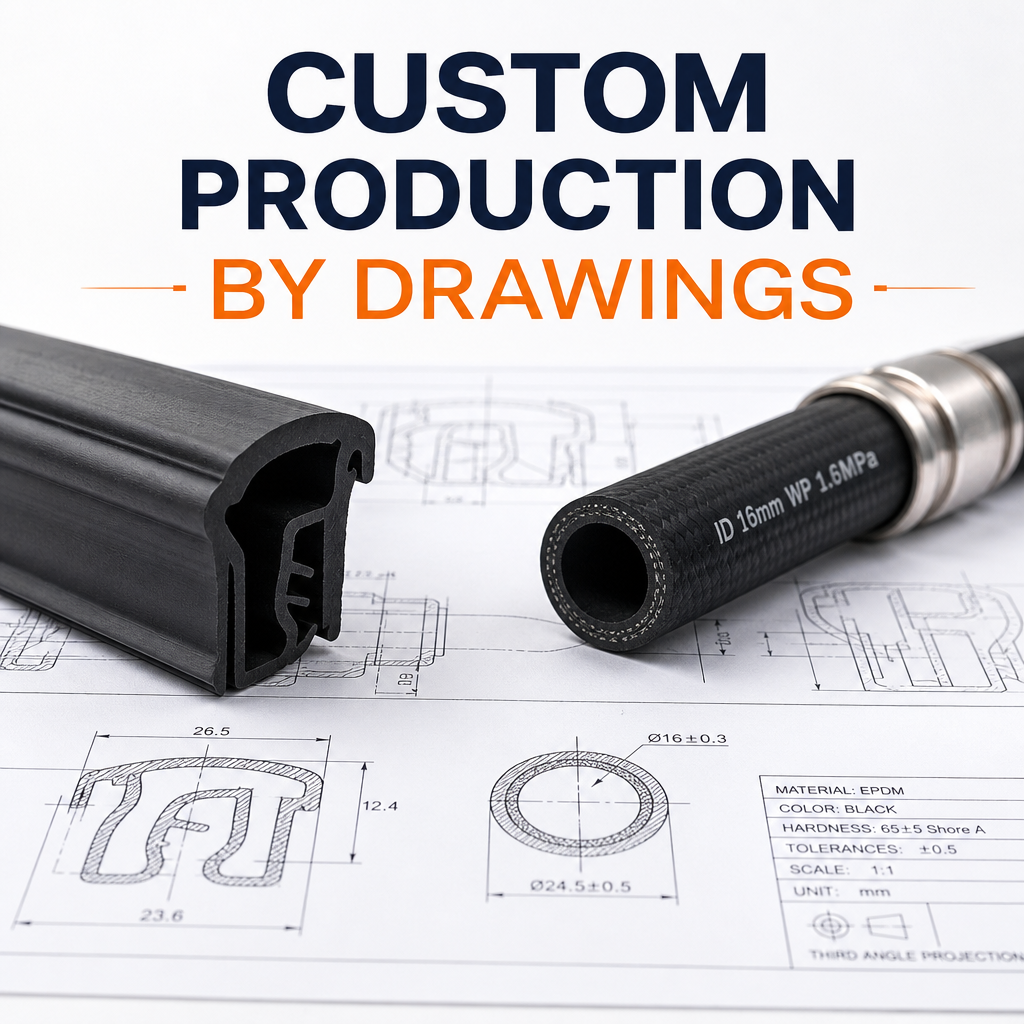

Custom rubber hose and sealing strip produced by RESRUB to customer drawing

What to send us — input options compared

Pick whichever format is easiest for you. Our engineers will translate it into a production-ready spec and flag any issues (tolerance, draft angle, material mismatch) before tooling.

Input format Best for What we need from you Lead time to quote
2D technical drawing (PDF / DWG / DXF) Standard hoses, regular strip profiles, OEM build-to-print. Drawing with ID / OD / wall, tolerances, hardness, color, application. 24 – 48 h
3D CAD file (STEP / IGES / STL) Irregular strip profiles, complex cross-sections, sealing geometries. 3D model + target material, hardness, color, annual volume. 2 – 3 working days
Physical sample (courier or photo + measurement) Reverse-engineering an existing part, matching a competitor's profile. Sample shipped to our factory, or 5+ photos with caliper measurements. 3 – 5 working days
Written specification Quick enquiry when no drawing exists yet. Application, working temperature / pressure, media, target size range, quantity. 24 h
  • Always include: target material or rubber family, Shore A hardness, color, working temperature, and annual demand.
  • Helpful to add: end-use industry, certifications needed (FDA / RoHS / REACH), and any surface finish (smooth, adhesive, fabric wrap).
  • No drawing yet? Our engineering team can help turn a sketch or sample into a manufacturable profile — ask for our ODM support.

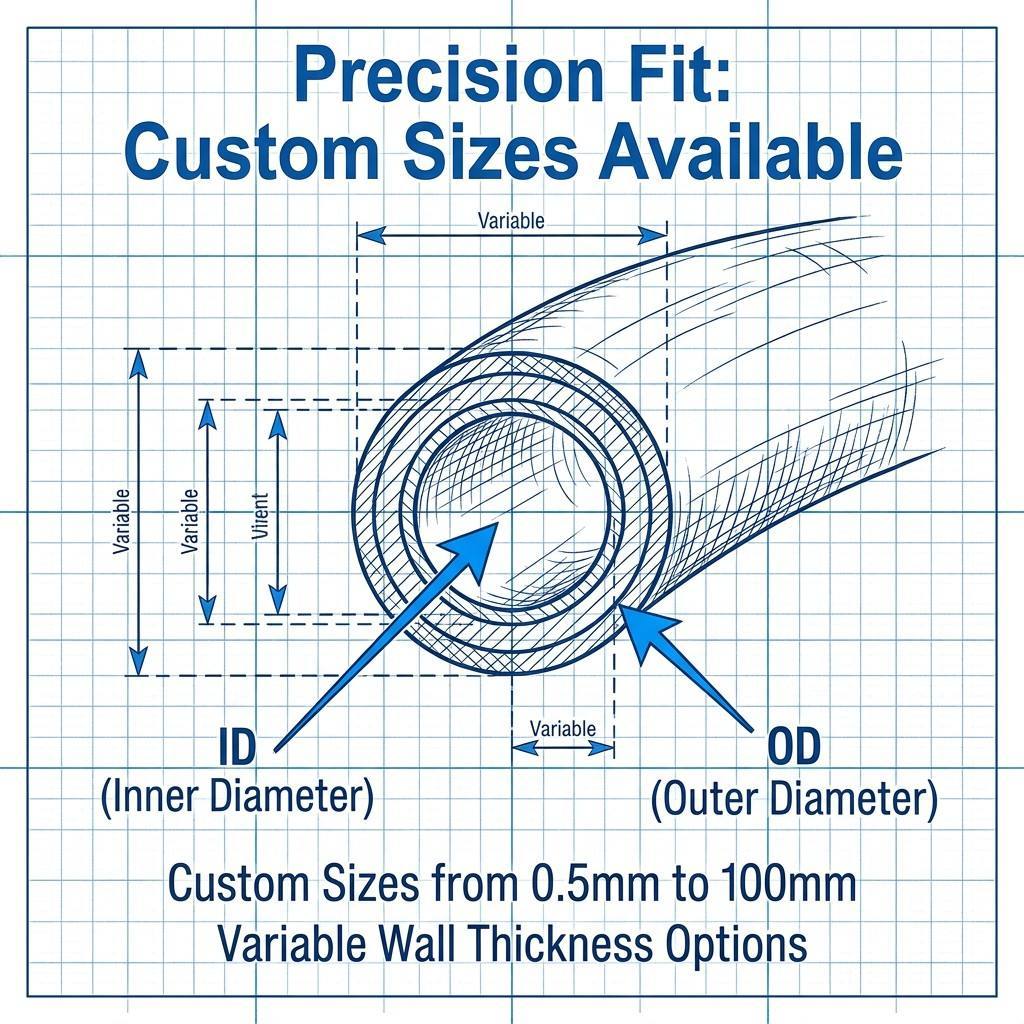

Rubber hose size customisation — inner diameter and wall thickness

How the custom order works — 6 steps

  1. Send inquiry with drawings / samplesReply within 24 hours on working days, confirming receipt and any missing information we need.
  2. Engineering review & DFM feedbackWe check manufacturability (tolerance, draft angle, section transitions) and propose the best material grade.
  3. Material selection & quotationFormal quote with material cost, tooling cost (if any), unit price, lead time, and payment terms within 3 – 5 working days.
  4. Prototype / sample makingFirst-off samples produced in 3 – 7 working days, then shipped by DHL / FedEx / UPS for your testing and sign-off.
  5. Sample approval & mass productionBulk production starts after your written sample approval. Typical lead time 7 – 15 working days after deposit.
  6. QC, packaging & worldwide shippingFinal inspection report, custom packaging, then sea / air / express to your port or door — DDP available on request.

Things to know before you order

  • Tolerance: Standard ±0.3 mm on extrusion dimensions, ±0.1 mm achievable on tight-tolerance items. High-precision orders may require die adjustment.
  • Tooling: Standard sizes (round, square, D-shape) usually need no new die. Custom irregular profiles need a one-time tooling fee (refundable or amortised over order volume).
  • MOQ: Hoses 500 m, sealing strips 1,000 m for mass production. Sample orders below MOQ are negotiable for first-time cooperation.
  • Color & hardness confirmation: For new custom colors we recommend a small trial batch first to confirm the shade before bulk run.

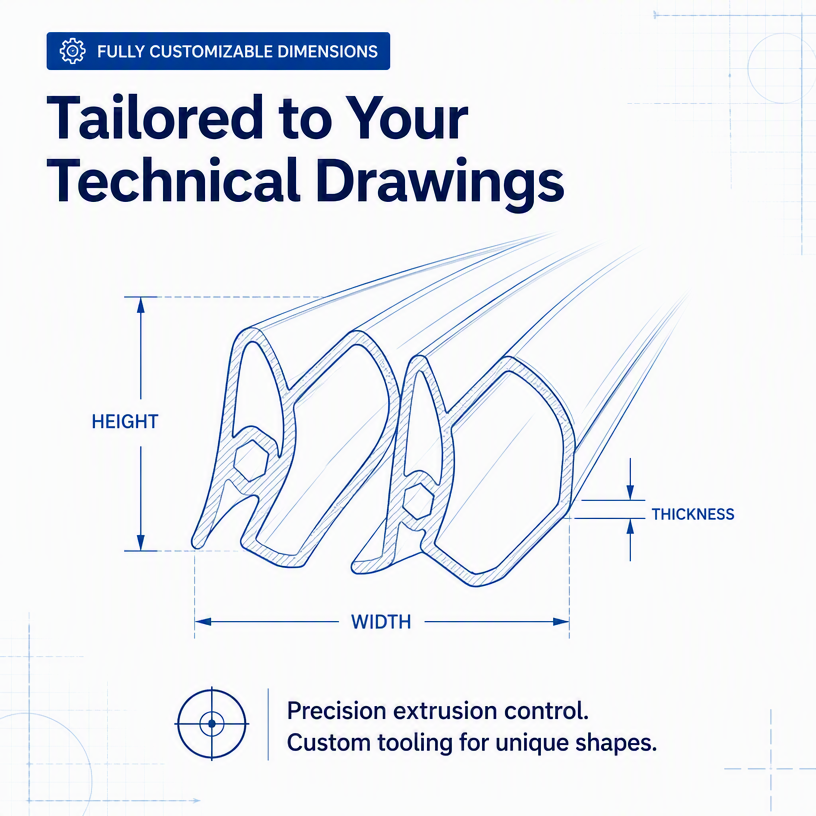

Custom irregular rubber sealing strip profile — fully customisable

Ready to start? Send us your drawing, 3D file, or sample and our engineering team will reply within 24 hours with a feasibility check and quotation.
