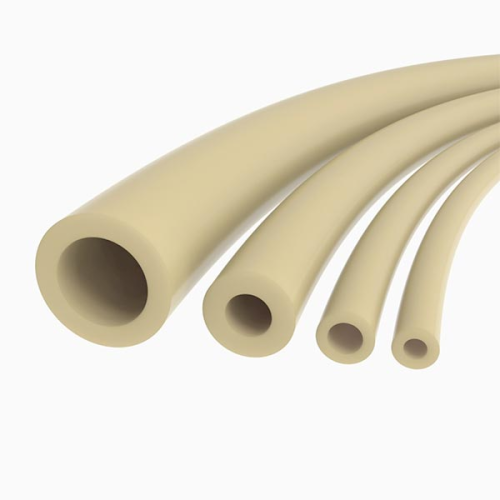

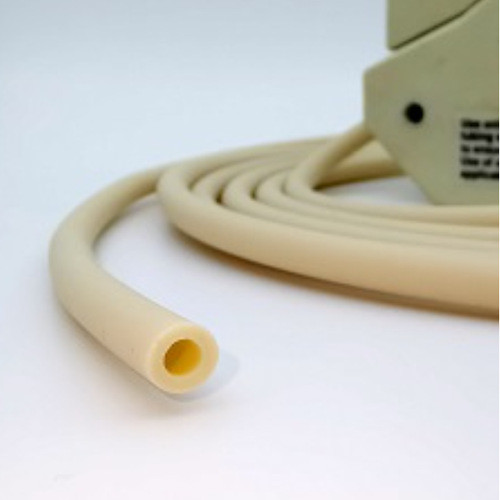

Anti-Kink High-Purity Peristaltic Pump Tubing for Sterile and Contamination-Free Applications
- Model
- NO.W2023111813
Item specifics
- Color (General)
- Custom
- Material
- TPE
- Length
- Custom
- Dimension
- Custom
- Temperature Range
- －40°C—125C
- Shore Hardness
- 60±5Shore A or customize
- Tensile strength
- 8Mpa
- Elongation at break
- 300%
Review
Description
Peristaltic Pump Tubing Introduction
Our high - performance Peristaltic Pump Tubing, crafted from premium materials like silicone or PTFE, designed to ensure precise, contamination - free fluid transfer in a wide range of applications, from medical devices to industrial equipment.
Customization Options

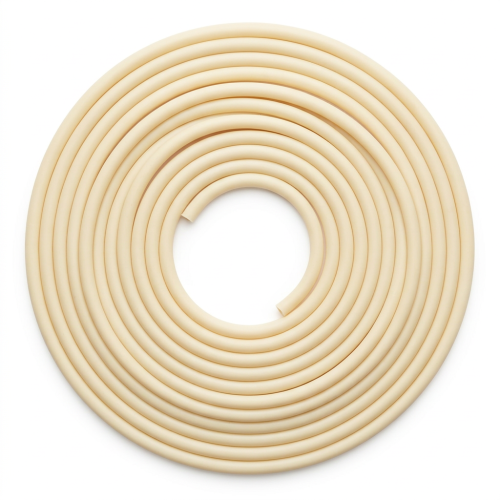

TPE could produce the tubing with enough length to fully connect any size loop.
And available to custom colors, such as black, white, pink, etc.
Material Advantages
This tubing is an ideal choice for diverse applications, offering outstanding elasticity, excellent chemical resistance, and remarkable durability, ensuring reliable performance in various environments.
Peristaltic Pump Tubing Properties:
| Length | Customizable | OEM/ODM | Available |
| Reinforcement | Customer Logo Available | Lead Time | 10 Days |
| MOQ | 100 Meters | Application | Home Appliances |
Technical Specification
TPE tubing typically performs well between -40°C to 80°C (-40°F to 176°F). Short-term exposure to slightly higher temperatures (up to 100°C) is possible, but prolonged use above 80°C may degrade elasticity over time.
Notes on measuring pipe sizes:
Outer Diameter (OD): The measurement of the tubing's external surface and is typically the larger value.
Inner Diameter (ID): The internal measurement inside the tubing, critical for ensuring proper flow rates.

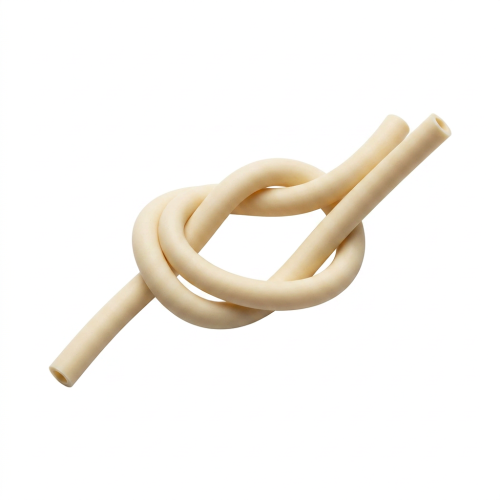

The most important thing to consider in tubing size is the combination of ID and OD. Selecting the correct measurement unit and ensuring precise compatibility are key to achieving an efficient and leak-proof liquid cooling system. These values also determine the wall thickness of your tubing, which in turn determines its flexibility and resistance to kinking.
What temperature range can TPE peristaltic tubing handle?
TPE tubing typically performs well between -40°C to 80°C (-40°F to 176°F). Short-term exposure to slightly higher temperatures (up to 100°C) is possible, but prolonged use above 80°C may degrade elasticity over time.
Can TPE tubing be used for food or medical applications?
Yes, the right TPE grades are certified for food contact (e.g., FDA 21 CFR 177.1520) or medical use (e.g., USP Class VI). Ensure the tubing is labeled as “food-grade” or “biocompatible” and free of toxic additives. Avoid contact with oils/fats for prolonged periods, as some TPE formulations may swell slightly.
Is TPE tubing resistant to UV or ozone exposure?
Standard TPE has moderate UV resistance but may degrade slowly with prolonged sunlight exposure. For outdoor or ozone-rich environments (e.g., water treatment), choose UV-stabilized TPE grades or switch to silicone tubing for better ozone resistance.
Item | Peristaltic Pump Tubing | |
Size | Customize | |
Material | TPE | |
Hardness | 60±5Shore A or customize | |
Color | White or customize any color | |
Density | 14.6g/m | |
Temperature resistant | －40°C—125C | |
Tensile strength | 8Mpa | |
Elongation at break | 500% | |
Lead time | 3 days for sample, 15 days for batch order | |
Packing method | Carton/ PE bag / Wooden pallet / Paper roll | |
Price tip | The price above is for your reference, final actual price depends on your design,material request, surface treatment, order quantity, package request, etc. | |
