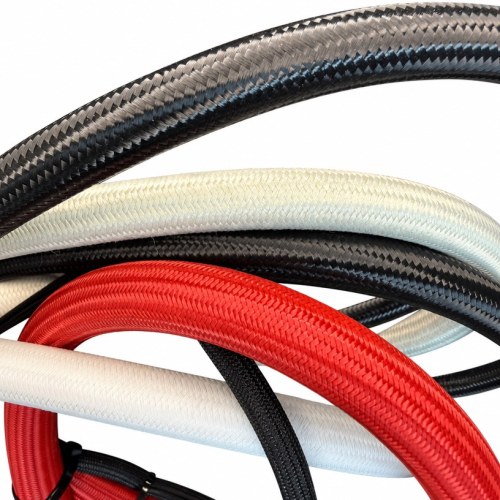

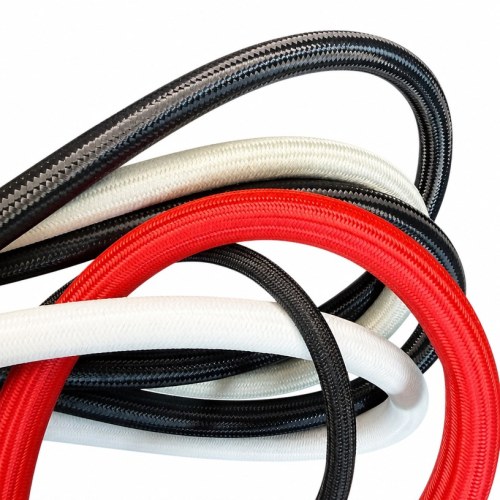

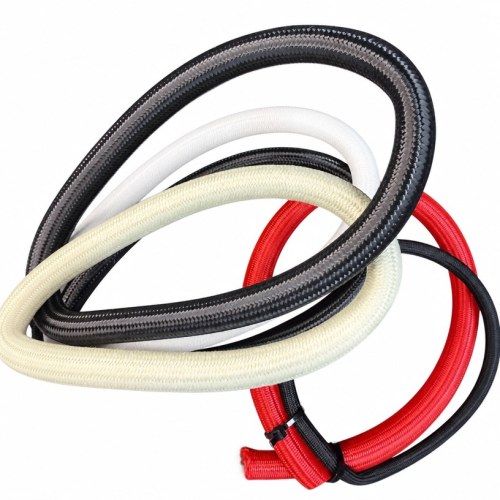

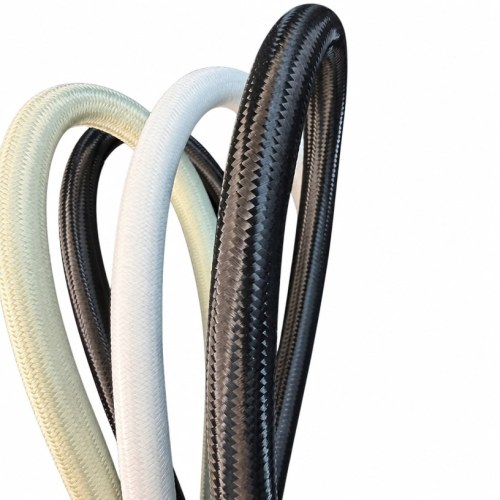

NBR Braided Rubber Hose - High Pressure Oil Resistant Flexible Tubing OEM/ODM
- Model
- RESRUB-NBR-BRAID
Item specifics
- Material
- NBR + Polyester/Nylon Fiber Braid + NBR
- Inner Diameter
- 3 mm – 50 mm (custom)
- Wall Thickness
- 2 mm – 8 mm
- Working Pressure
- 10 – 20 bar (standard)
- Burst Pressure
- ≥ 3× working pressure
- Working Temperature
- -30°C to +120°C
- Hardness (Shore A)
- 65 – 85
- Color
- Black / White / Red / Blue / Custom
- Reinforcement
- Polyester / Nylon fiber braid
- Standard Length
- 20 – 100 m roll
- Certifications
- RoHS / REACH / ISO 9001
- OEM/ODM
- Accepted
- Sample
- Free 5–10 m sample available
- Lead Time
- 7–15 days standard / 15–30 days custom
- HS Code
- 4009 31 00 00
Review
Description
High-pressure NBR braided rubber hose / fuel & oil-resistant flexible tubing. OEM/ODM factory, -30°C~+120°C, custom ID/wall/length. Our NBR braided rubber hose is engineered with a high-tensile polyester/nylon fiber braid embedded between inner NBR tube and outer NBR cover, delivering excellent pressure resistance, kink recovery, and oil/fuel resistance. It is the industry-standard solution for hydraulic lines, fuel delivery, lubricant transfer, oil cooling, and air brake systems. As a direct factory with extrusion + braiding + vulcanization under one roof, we offer full OEM/ODM service: custom inner diameter (3 mm – 50 mm), wall thickness, working pressure rating, color, and private-label packaging. Standard material: NBR (Nitrile Butadiene Rubber) inner tube + polyester/nylon fiber braid reinforcement + NBR cover. Custom colors and hardness available on request. Standard export packaging: PP/PE film wrapping + woven bag + carton. Custom packaging with private label, barcodes, and retail-ready boxes available on request. Inner diameter 3 mm–50 mm supplied in 20–100 m rolls; bulk reels and pre-cut lengths also available. Standard sizes MOQ 500 m; custom specifications MOQ 1,000–2,000 m. Sample rolls of 5–10 m available for testing. Yes. We can engineer single-braid, double-braid, or aramid-reinforced constructions to meet 5–30 bar working pressure and custom burst pressure targets. Yes. We provide OEM/ODM with custom printing on the hose, custom reel/box/carton, your brand labels and barcodes. Our factory is ISO 9001 certified. Material can be supplied RoHS, REACH, FDA-grade, or per your local market requirements. COA and MSDS available. Send us your drawing, sample, or specification (ID / OD / pressure / temperature / color) — our engineering team will reply with a tailored quote and free samples within 24 hours.NBR Braided Rubber Hose - High Pressure Oil Resistant Flexible Tubing OEM/ODM | NBR Braided Rubber Hose | OEM/ODM Custom
Product Overview
Product Gallery
Key Features & Advantages
Technical Specifications
Inner Diameter (ID) 3 mm – 50 mm (custom 1 mm – 100 mm available) Wall Thickness 2 mm – 8 mm (single braid) / up to 12 mm (double braid) Working Pressure 10 – 20 bar (standard) / 20 – 30 bar (high-pressure) Burst Pressure ≥ 3× working pressure Working Temperature -30°C to +120°C (high-temp compound up to +150°C) Reinforcement Polyester / nylon / aramid fiber single or double braid Hardness (Shore A) 65 – 85 (custom 55 – 90 available) Standard Length 20 m, 30 m, 50 m, 100 m roll (custom length available) Color Options Black, white, red, blue, green, yellow, silver, beige, custom Certifications RoHS, REACH, ISO 9001 (factory), custom compound testing OEM/ODM Custom ID/OD, private label, custom packaging, sample available Lead Time 7–15 days for standard / 15–30 days for custom Material & Color Options
Typical Applications
Packaging & Delivery
FAQ
What is the minimum order quantity (MOQ)?
Can you match a specific working pressure rating?
Do you offer private label and custom packaging?
What about certifications and material compliance?
