Silicone Windshield Washer Spray Pipe - UV Resistant Flexible Tube OEM/ODM

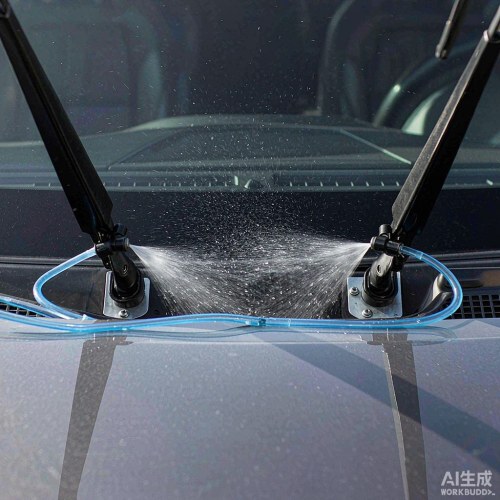

Silicone Windshield Washer Spray Pipe for Automotive Washer Systems

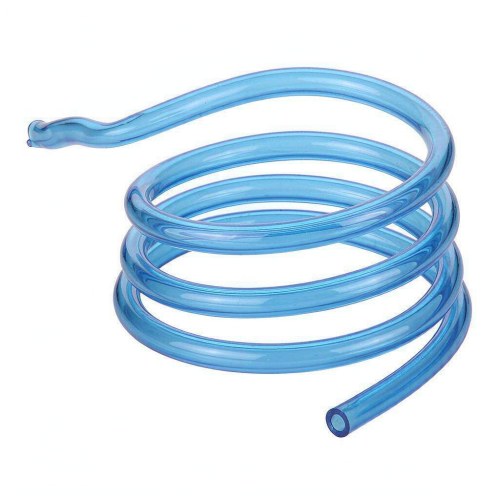

Our translucent silicone windshield washer spray pipe is the reliable fluid line for wiper washer systems, headlamp washers, and rear window sprayers. Soft enough to route under the hood and around tight corners, yet strong enough to hold washer fluid pressure season after season without hardening or cracking.

Why Silicone for Windshield Washer Lines?

• UV & Ozone Resistant – Under-hood heat and direct sun exposure will not harden, crack, or discolor the tube.
• Washer Fluid Compatible – Safe with washer solvent, antifreeze wiper fluid, and detergent mixes.
• Ultra-Flexible Routing – 60 Shore A softness lets you bend the pipe around the fender liner, wiper linkage, and firewall without kinking.
• Wide Temperature Range – -50°C to +200°C keeps the line flexible in winter freezes and summer engine bays.

Built for Automotive OEM and Aftermarket

Standard spray pipe sizes (ID 2.5/4/5/6mm) fit most washer pump outlets, check valves, and spray nozzles from Toyota, VW, Ford, GM, and aftermarket kits. Available cut-to-length for repair kits or full 50m rolls for assembly lines.

Specifications

• Material: Automotive-grade translucent silicone, RoHS compliant
• Standard Sizes: ID 2.5 × OD 6mm, ID 4 × OD 8mm, ID 5 × OD 9mm, ID 6 × OD 10mm
• Wall Thickness: 1.5 - 2.5mm uniform, smooth inner bore
• Hardness: 60 Shore A (soft, anti-kink)
• Working Temperature: -50°C to +200°C
• Working Pressure: 0.4 MPa (58 PSI)
• Burst Pressure: ≥ 1.2 MPa
• Lengths: 10m / 30m / 50m or cut-to-length

Windshield Washer Use Cases

• Front windshield wiper washer spray lines
• Rear window / hatchback washer tube replacements
• Headlamp cleaning system fluid lines
• OEM production for automotive parts manufacturers

Quality & Packaging

Every batch is pressure-tested and UV-aged before shipment. Packaging options: coiled tubes in sealed polybags for aftermarket kits, or reinforced export cartons for OEM volumes. Custom colors and custom branding (silk-screen, inkjet) available.

Why Resrub

• Direct factory pricing, 12+ years silicone extrusion experience
• RoHS / REACH compliance, OEM for global automotive brands
• Worldwide delivery by air, sea, or express courier
• Engineering support for sizing, routing, and connector fitting

Request a Free Quote or browse our full rubber tubing catalog.
