Custom Rubber Sealing Strip - Multi-Shape H/P/U/D Profile Extrusion OEM/ODM
- Model
- RESRUB-SEAL-STRIP
Item specifics
- Material
- EPDM / NBR / Silicone / CR / PVC / TPV / TPE
- Profile Shape
- H / P / D / U / E / L / T / Custom
- Hardness (Shore A)
- 40 – 90 (custom)
- Working Temperature
- -50°C to +200°C
- Tensile Strength
- 5 – 20 MPa
- Elongation at Break
- 200% – 600%
- Density
- 0.95 – 1.55 g/cm³
- Color
- Black / White / Gray / RAL / Pantone
- Adhesive Backing
- Optional (3M / Tesa tape)
- Standard Length
- 30 – 100 m roll or cut-to-length
- Certifications
- RoHS / REACH / FDA (compound-dependent)
- OEM/ODM
- Custom profile, compound, packaging
- Sample
- Free sample available
- Lead Time
- 7–15 days standard / 15–30 days new tooling
- HS Code
- 4016 93 00 00
Review
Description

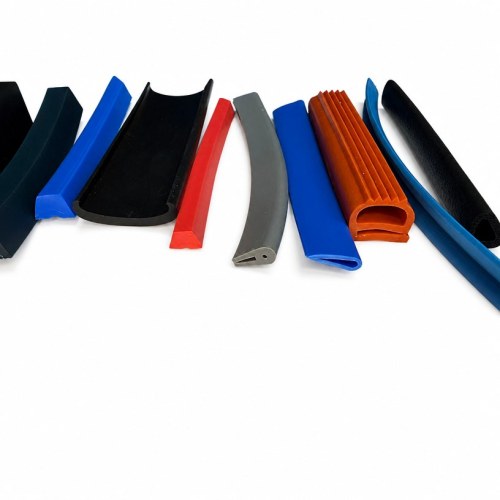

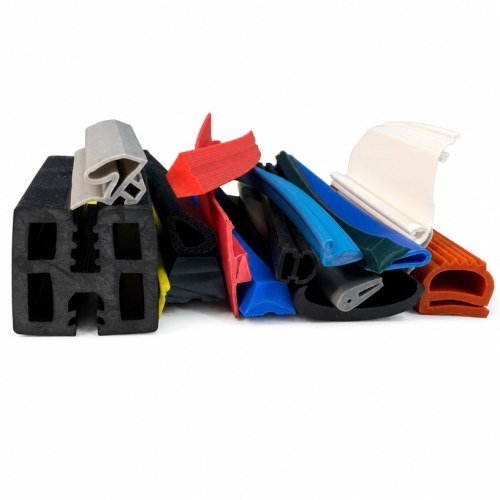

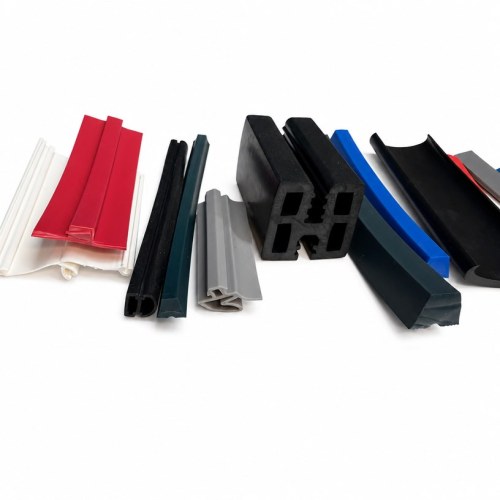

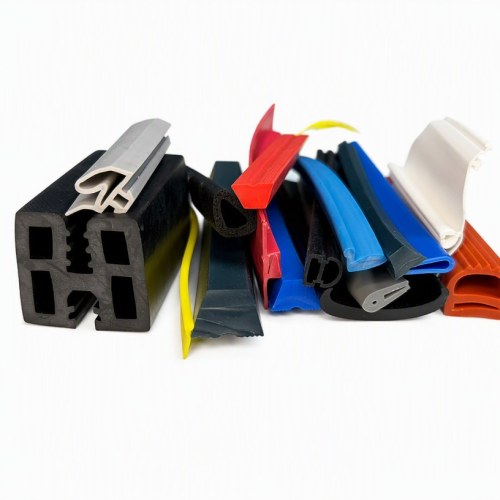

Custom rubber sealing strip / multi-shape H/P/U/D profile extrusion. EPDM/NBR/Silicone/CR/PVC, custom color/hardness/shape OEM/ODM. Our rubber sealing strips are produced by precision extrusion with custom-designed tooling to deliver the exact profile your application demands — H-shape, P-shape, D-shape, U-shape, E-shape, L-shape, T-shape, and many bespoke geometries. We work with EPDM, NBR, Silicone, Neoprene (CR), PVC, TPV, TPE, and natural rubber to match the environment: weatherproof outdoor, oil-resistant, food-grade, flame-retardant, anti-static, or high/low temperature. Common uses include door/window seals, automotive weatherstrip, machinery gaskets, electrical cabinet door gaskets, container seals, and edge protectors. As a direct factory, we provide full OEM/ODM: profile design support, custom compound, hardness 40–90 Shore A, any color, and cut-to-length or continuous coils. Standard material: EPDM / NBR / Silicone / CR / PVC / TPV / TPE (per application). Custom colors and hardness available on request. Standard packaging: continuous coil wrapped in PP film + woven bag + carton. Cut-to-length pieces bundled with paper bands. Custom retail-ready packaging, blister packs, and private-label boxes available on request. Yes. Send us a drawing, sample, or even a sketch. Our tooling workshop will produce the extrusion die in 7–10 days, then trial samples within 3–5 days. EPDM for outdoor/weather/UV; NBR for oil/fuel; Silicone for high temperature (200°C) or food contact; PVC for low-cost; TPV/TPE for recyclable. Tell us your environment and we recommend the right compound. Yes. 3M / Tesa / generic adhesive tape can be applied to one or both sides. Peel strength and temperature range selectable. Standard profiles MOQ 500 m; new custom tooling MOQ 1,000–2,000 m. Free samples of standard profiles available. Send us your drawing or sample, or describe your application — we will recommend the right material and tooling, and ship free samples within 48 hours.Custom Rubber Sealing Strip - Multi-Shape H/P/U/D Profile Extrusion OEM/ODM | Custom Rubber Sealing Strip | OEM/ODM Custom
Product Overview
Product Gallery
Key Features & Advantages
Technical Specifications
Profile Shape H, P, D, U, E, L, T, or custom (3D drawing welcome) Material Options EPDM / NBR / Silicone / CR / PVC / TPV / TPE / NR Hardness (Shore A) 40 – 90 (custom compound) Working Temperature -50°C to +200°C (depends on material) Tensile Strength 5 – 20 MPa Elongation at Break 200% – 600% Density 0.95 – 1.55 g/cm³ Color Black, white, gray, red, blue, green, yellow, RAL/Pantone match Standard Length 30 m, 50 m, 100 m roll (or cut-to-length) Self-Adhesive Backing 3M / Tesa tape optional (one side or two sides) OEM/ODM Custom profile, custom compound, private label Lead Time 7–15 days for standard / 15–30 days for new tooling Material & Color Options
Typical Applications
Packaging & Delivery
FAQ
Can you produce my custom profile?
Which material should I choose?
Can you add self-adhesive backing?
What is the MOQ?
Request a Quote
